FEATURE:



o Used for automotive, truck, farm and heavy equipment repair.

o Perfect for a variety of autobody repair, frame repair and construction jobs

o Contains all heavy duty equipment needed for lifting, pushing pulling, bending, straightening &

o spreading.

o Easy to assemble

o Safe extremely

o Easy to use



SPECIFICATIONS:



o Color: Yellow

o Size:28 x 15.7 x 5.9 inch

o Weight:64 lbs

o Load Capacity: 10 tons

o Jack Power Type: Hydraulic

o Max Lifting Height: 135 mm-358MM

o Cylinder Min Height:390 mm

o Working Pressure: 62 Mpa

o Oil Be Filled: 500 g

o 56' long high pressure hose

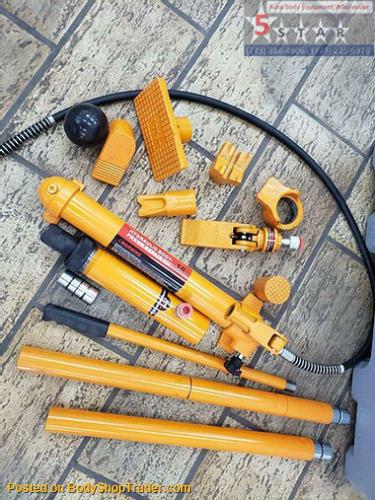

PACKAGE INCLUDES:



o 1xhydraulic hand pump

o 1x56' jack hose

o 1x10 ton ram

o 1xspreader ram

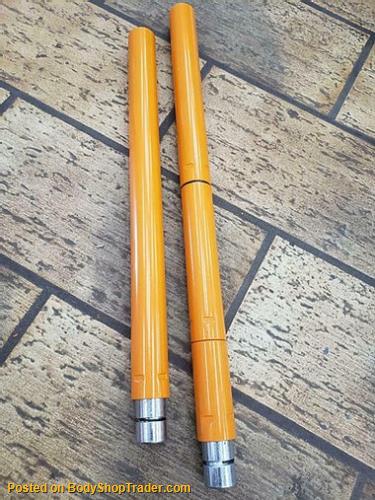

o 1x22' extension

o 1x12' extension

o 1x8' extension

o 1x4' extension

o 1xmale connector

o 1xflat base

o 1xwedge head

o 1xspreader plunger toe

o 1xspreader ram toe

o 1xserrated saddle

o 1xRubber Head

o 1xHigh Impact case



NOTE:



o 1.Check the level of oil,if it is not sufficient,please add the same hydraulic oil.

o 2.After using,close the valve with the cover,to keep the oil free from the dust and dirt.

o 3.Before lifting,adjust the jack slowly to make the load coaxial with resnect to jack.

o 4.Tube can not be bent,near to the catting tools and fires,also can not put te weight on it.

o 5.Maximum load can not exceed the rated capacity

o 6.The load can not exceed the half of the capacity when all tubes used.

o 7.The extension of the piston can net exceed the stroke.
