The 22' BED tilt bed frame rack is a high quality, durable frame straightening machine designed to accommodate full-frame or uni-body vehicle with 7,700 lb. lighting capacity. The four 10-ton 'clear floor' pulling towers with 360 degree pulling capability and almost unlimited height and angle adjustment. The machine deck offers multiple tie-down/down pull locations and a universal anchoring system with adjustable height clamping assemblies. It also comes standard with a pulling chain on each tower, roof/up pull attachment, universal wheel stands & (2) dead car dollies.



Features



• Thick Heavy Steel Design



• Tilt Bed



• Clear Floor



• 360 degree pulling capability.



• Designed to repair full-frame or uni-body vehicles



• Hydraulic tilt bed with 7,700 lb. lifting capacity



• Durable, heavy-duty constructions with powder coat finish



• Universal anchoring system with adjustable height pinchweld assemblies



• Multiple tie-down/down pull locations



• 4 10-ton pulling towers (posts)



• Adjustable tower collars-adjust pulling height and angle by a fraction on an inch.



• Quick disconnect hydraulic fitting & hose connection



• Drive-on ramps



Includes

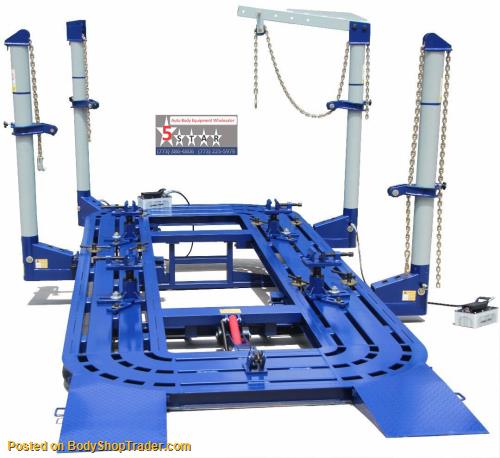

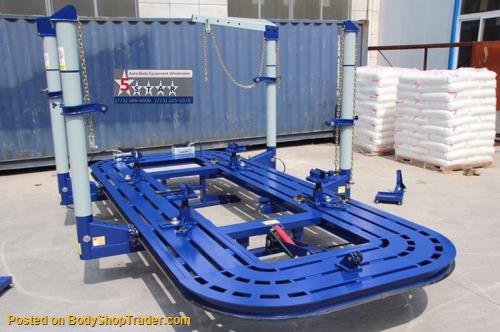

• 22' Frame machine bed which is showing in the picture



• 4 10-ton pulling towers (posts) 360 degree 'clear floor' pulling towers w/10 ton hydraulics

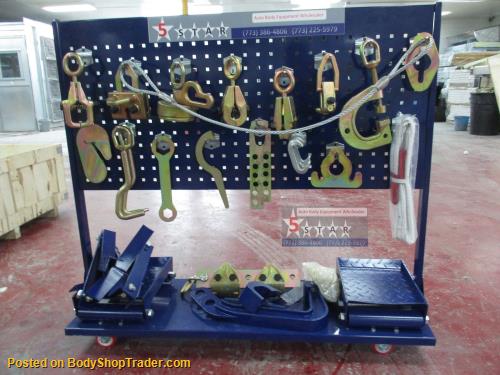

• Stand with clamps and accessories which is showing in the picture

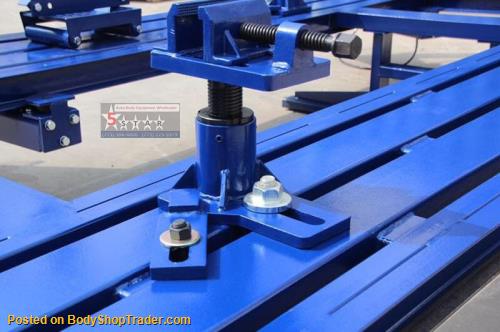

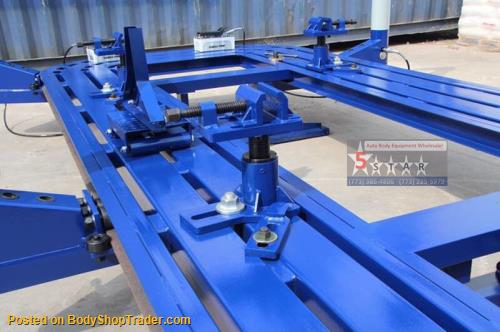

• (4) Pinchweld assemblies with clamps with adjustable height



• (4) Air/Hydraulic pumps(10,000 PSI) Each tower gets its own pump



• (4) Pull chains with hooks



• (2) Wheel stands



• (2) Dead car dolly



FREE PUSHER WITH FOOT PUMP WHICH IS THE YELLOW ATTACHMENT ON THE BENCH(for a limited time)

Heavy duty frame machine backed by 3-years warranty.
